TC Cable

Retail price
0.0
Market price
0.0
元
Number of views:
1000
Product serial number
Category
Accessories
Quantity
-
+
Stock:
1

1

1

Scan the QR code to read on your phone

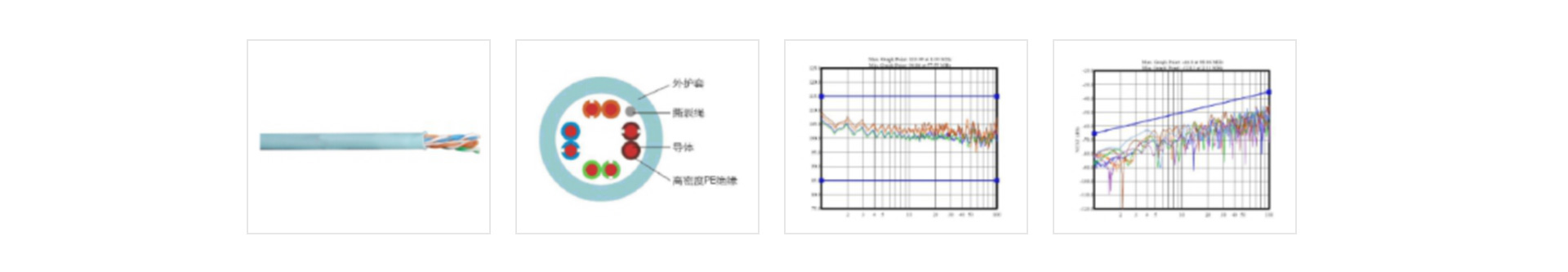

Structure

copper conduction diameter

0.51mm

insulation diameter

0.9mm

sheath thickness

0.6±0.1

shealth diameter

5.3±0.1mm

cable weight

10.5KG/disc ±0.3

cable packing

305米/disc



Install

minimum bending radius(dynamic)

16.8mm

minimum bending radius(statics)

33.6mm

maximum installation tension

25N/P

operating temperature

-20℃～+70℃

Installation temperature

-0℃～+40℃



electrical characteristics

frequency（MHZ）

attenuation（dB/100m）

near-end crosstalk(dB)

integrated near-end crosstalk(dB)

1 MHZ

2.0 dB/100m

65.3 dB

62.3 dB

4 MHZ

4.1 dB/100m

56.3 dB

53.3 dB

8 MHZ

5.8 dB/100m

51.8 dB

48.8 dB

10 MHZ

6.5 dB/100m

50.3 dB

47.3 dB

16 MHZ

8.2 dB/100m

47.2 dB

44.2 dB

20 MHZ

9.3 dB/100m

45.8 dB

42.8 dB

25 MHZ

10.4 dB/100m

44.3 dB

41.3 dB

31.25 MHZ

11.7 dB/100m

42.9 dB

39.9 dB

62.5 MHZ

17.0 dB/100m

38.4 dB

35.4 dB

100 MHZ

22.0 dB/100m

35.3 dB

32.3 dB

125 MHZ

24.9 dB/100m

33.8 dB

30.8 dB
